The Polar Constellations

  1. Anybody recognize anything? (Someone will recognize the Big Dipper). {Trace out the Big Dipper}.

  2. It's really not a constellation, it's what's called an 'asterism', a highly recognizable part of a constellation. The full constellation actually is Ursa Major. {Trace out as much of Ursa Major as can be seen - later in the summer, the head & paws may not be visible.}

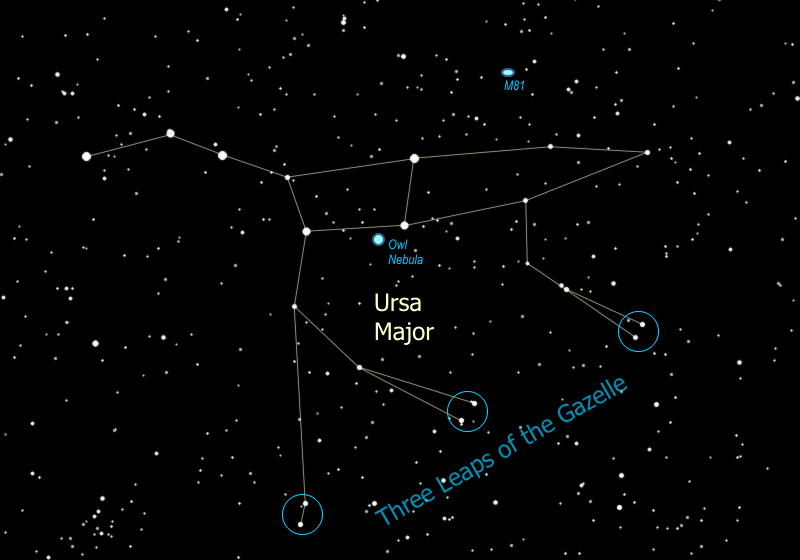

  3. However - if the tour is being given on a late spring night and the Bear's paws can be seen then I also tell about the Three Leaps of the Gazelle. This asterism is the sequence of three pairs of stars - normally seen as the paws of Ursa Major. The story is that Leo the Lion startled the gazelle, who in turn dashed off across a great celestial pond, leaving a pair of stars marking each of the three leaps. Great story, great asterism, and by July, pretty much lost to the horizon.

  4. The stars of the Big Dipper, with the exception of the tip of the handle and the tip of the cup, are all moving in the same direction -- up and to the left, or toward the Northwest. Because they're close together (all are about 75 light years away) and moving through space in the same direction at the same speed, these stars are believed to have formed together from the same original nebula. This group, known as the "Ursa Major Moving Group", is officially the closest star cluster to us, and includes stars that are scattered across the sky all the way from Boötes & Corona Borealis to Auriga and Taurus. The reason they seem to be everywhere is because our 5 billion-year-old sun has drifted into the outer regions of this group of 500 million-year-old youngsters.

  5. We can find two of the best and brightest galaxies in the sky just above the two stars that form the neck of the Bear -- they are M81 and its neighbor M82. Use the binoculars and follow the line of the Bear's neck to a skinny triangle, then go sideways to find a pair of stars that point the same direction as the triangle does. Just a little farther you find M81, a faint fuzzy spot just off the end of the arc of three faint stars nearby. See it? This faint fuzzy spot is actually a spiral galaxy, 12 MILLION light years away. When I get this one in the telescope you'll see that there are actually two galaxies there. The other one is M82, and it's called the Cigar Galaxy because of its shape -- it looks flatter than M81 because we're seeing it edge-on. M82 is about the same distance as M81, and is called a "starburst galaxy", because the gravity from M81 is causing a burst of new star formation in the Cigar. So even though M82 is only about a third the size of our Milky Way galaxy, it is five times brighter!

    M81 is on the left, M82 is at the right
    M81 and M82

  6. The Big Dipper is a polar 'constellation' -- one that is very close to the North Pole. If stars are close enough to the pole they never set below the horizon and we can see them all year long. Can anyone spot the Pole Star? How do you find it? That's right, the two stars at the front edge of the cup are pointer stars and point to the North Star, whose actual name is Polaris. Go up from the cup to find Polaris.

  7. Since the earth's north pole points to Polaris and the earth rotates around its poles, all the constellations seem to rotate around Polaris, including the Big Dipper. You can tell time using the Big Dipper -- it serves as a 24-hour clock.

    Click on the little clock here for more information.

  8. Polaris is a part of the constellation Ursa Minor, more commonly known as the Little Dipper. Polaris is at the tip of the handle. {Trace out the Little Dipper.}

  9. The two most important Polar Constellations to recognize are the Big Dipper and the Big W. The Big W is Cassiopeia - roughly on the opposite side of Polaris from the Big Dipper -- {Trace out Cassiopeia}. Cassiopeia is a Queen in her chair, and even though this isn't the "official" way to look at her, I envision Cassiopeia's head at the left side of the "W", making the figure like a lounge chair with a foot rest. This is how I learned it as a kid, and it's very useful because you can easily find the North Star by going "Up from the Seat" of Cassiopeia's chair, in similar manner to going "Up from the Cup" of the Big Dipper. Since the Big W is on the opposite side of the North Star, this gives you a way to find Polaris any time of the year, even when the Dipper is below the tree line.

  10. Cassiopeia got herself in trouble with Poseidon boasting she was more beautiful than the Nereids (sea nymphs) which leads to the story of Andromeda and Perseus and involves no less than six constellations in the sky (all fall constellations), the most involved in telling any constellation legend. That's a story for another season.

  11. The constellation Cassiopeia lies right smack in the path of the Milky Way, and is filled with galactic clusters, also called open clusters. There are several decent examples in Cassiopeia, like Messier object #52, or "M52", one of many "M" objects named after a catalog published in the late 1700's by the Frenchman Charles Messier. Messier was a comet hunter of great renown who published a catalog of fuzzy things that might be confused with comets. These ended up being some of the most interesting objects in the sky. When you find M52 you are looking at a "young"cluster of about 200 stars -- young means that it is only about 100 million years old. The cluster is 10 light years in diameter and 3000 light years away from us, which is why you need the binoculars to see it.

    Another interesting galactic cluster is NGC 663 (NGC stands for New General Catalog -- published in 1888 it's not really that new). This cluster lies about half way between the two stars on the flattened side of the "W", ε and δ Cassiopeiae. As you sweep the binoculars between the two stars, you will notice that NGC 663 is merely the largest and brightest of several clusters in this region. That may be because it is the closest, at about 3000 light years. The others in that area are 6000 - 8000 light years away. How many clusters can you spot between these two stars? You might be able to see as many as five, with NGC 663 at the center and the other four marking the corners of a diamond around it.

    M52 - Note the little box of stars around the cluster     NGC 663 - halfway down the left side of the "W"

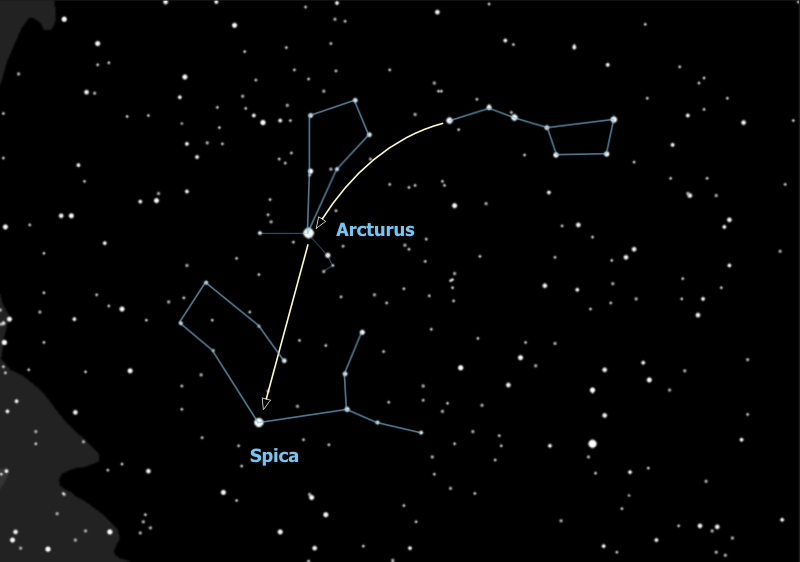

  12. So the Big Dipper points to the North Star -- it also points to other important stars -- you follow the arc of the Dipper's handle and "arc to Arcturus", then "spike to Spica" - two very important stars that we will get to in a minute. So the three stars of the handle are pointers as well.

  13. Wait a minute is that really three stars in the Dipper's handle or is it four? Looky there the middle star seems to have a companion -- the bright star is Mizar and the companion is Alcor. Who can see the companion?

    That was used by ancient Greek and Arab armies as an eye test. Some see them as a horse & rider. The Europeans saw the handle of the dipper as the tail of the Great Bear. Since bears don't have tails they danced around it by explaining that when the gods lifted the bear to the sky the tail got stretched out. Pretty lame. The Indians, who knew darn right well that bears don't have tails, saw the three stars of the handle as hunters chasing the great bear (interesting that they also saw a bear). When the constellation Ursa Major sets in the fall, the Indians explained that the hunters catch up with him and shoot him with their arrows, which is why the leaves on the trees turn red. Anyway the three stars are hunters and one of them brought his dog, so Mizar is a hunter and Alcor is his dog. Or another story is that there are three hunters pursuing the bear and one brought a pot to cook the bear in (optimistic). So Mizar is a hunter and Alcor is his pot. Yet another story involves the Pleiades. This is a star cluster in the constellation Taurus (a winter constellation). It is called "the Seven Sisters" and those with very sharp eyes can see seven stars but most people can only see six. So the story is that Mizar is riding off with the Seventh Sister.

    But wait there's more! When we put the telescope on these two you'll see that Mizar is really a double star itself! So these three form a triple star. But wait... that's right... there's MORE! In reality each of the two stars that make up Mizar is a double star, too close for us to see even with a big telescope, and for that matter, so is Alcor! So Mizar & Alcor comprise a SIX STAR SYSTEM!!
