The Constellation Scorpius

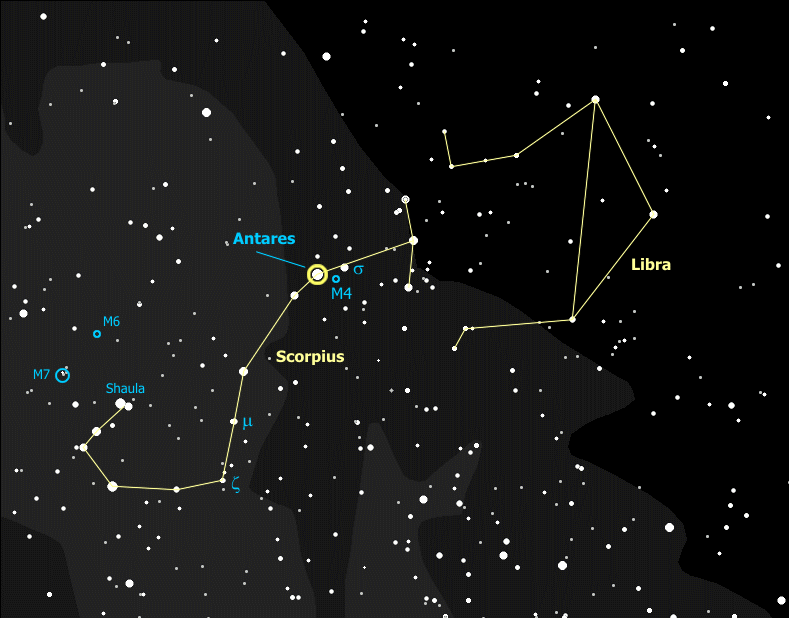

  1. Scorpius is a scorpion, a constellation that dominates the summer sky, and, unlike Sagittarius, looks exactly like what it's supposed to be. {Trace out Scorpius, noting Antares at its heart}. This is your third Zodiac constellation.

    Remember the red star Antares which is the heart of the Scorpion - Antares is a red super-giant and it is a first magnitude star. There is only one other red super-giant that is this bright and it's on the opposite side of the sky, in the constellation that dominates the winter sky -- the star Betelgeuse in the constellation Orion. Both stars are about 500 ly away in opposite directions so we lie just about halfway between the two. Such stars are rare -- there are only 200 known red super-giants and all are much dimmer, most are much farther away than these two stars.

    Even though it is a red super-giant near the end of it's life, Antares is actually a very young star, at least compared to the sun. Antares was born only about 20 million years ago, long after the Dinosaurs died out, and is nearly at the end of its life already. This is because Antares is so much more massive than the sun. The greater mass causes greater pressure and forces the star to burn hotter (bluer) and faster. So Antares was once a blue supergiant with 12 times the mass of the sun, burning 6,000 times as fast as the sun. Its life as a star will only be about 2 thousandths as long the sun will live. With stars, the bigger they are, the harder they fall.

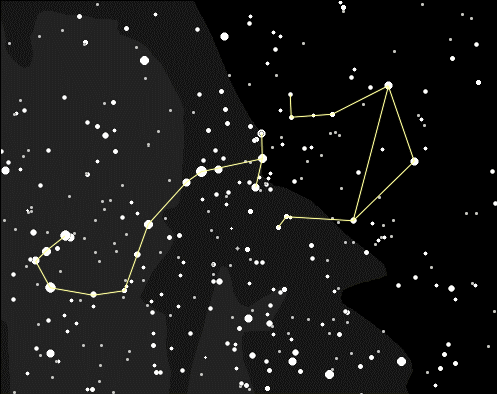

  2. The scorpion used to be a much bigger constellation. The two brightest stars of Libra - your fourth Zodiac constellation, have Arabic names that mean "Northern Claw" (Zubeneschamali) and "Southern Claw" (Zubenelgenubi). Say those real fast five times. {Trace out Libra. Trace out the scorpion's claws.} The Romans cut off the scorpion's claws and created a new Zodiac constellation to fit their new, 12-month calendar. The constellation Libra represents a balance scale, with the top of the balance to the west (your right).

    If you look at the Southern Claw in the binoculars you will discover it is actually a double star -- a true double star -- they are the same distance of 75 light years away and moving together. If you have good eyes you may be able to see both stars without the binoculars. Meanwhile if you look at the Northern Claw in the binoculars you see what many people call the only green star visible to the naked eye. What do you think? Is this star really green?

  3. Tracing down the scorpion's back with binoculars you can find a lot of great objects. M4 is a globular cluster about halfway between Antares and σ (Sigma) Scorpii, the bright star just to the West. M4 appears in the binoculars as a faint ghostly presence, which almost looks painted onto the sky between the two bright stars.

    <μ (Mu) Scorpii is a double blue star, a true pair almost a light-year apart. South of μ is ζ (Zeta) Scorpii, a visual double, not a true double (very close to the horizon, difficult to see even with binoculars). The eastern, brighter star is an orange giant about 150 light years away. The western star is a blue super-giant estimated to be 5700 light-years away, one million times as bright as the sun - a candidate as possibly the most massive super-giant known. Just above ζ Scorpii is a beautiful open cluster, NGC6231. The bright star at the tip of the scorpion's tail is Shaula, a brilliant blue star about 310 light years away.

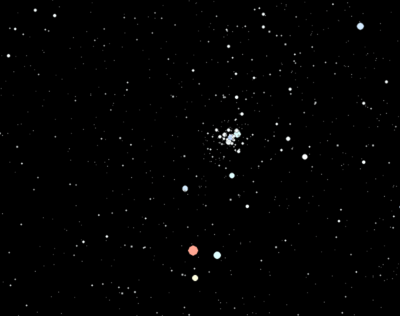

    NGC6231 is called the "Northern Jewel Box".

  4. Above and to the east of Shaula you will find two "open clusters", M6 and M7. Open clusters, also called 'galactic' clusters, are small groups of stars, maybe a hundred or so, that formed from the same (huge) cloud of gas and dust. They are very often young stars - blue ones which are large and very hot and don't last long.

    These two clusters are good examples, most of the brightest stars are blue ones. Groups like this eventually break up, mostly by random events, (our sun has left it's original cluster) so when they are still together like this it's another sign that the cluster is young.

    M6 is sometimes called the "Butterfly Cluster" because it looks like a butterfly with its wings open (flying toward the Northwest). Can you see it in the telescope? You may even be able to spot the butterfly's antennae. Can you spot the orange giant among the hot blue stars? M7 is more spread out (it's closer) - it can be seen perfectly well with binoculars and can even be spotted with the unaided (sharp) eye.

    M6 Butterfly Cluster     M7

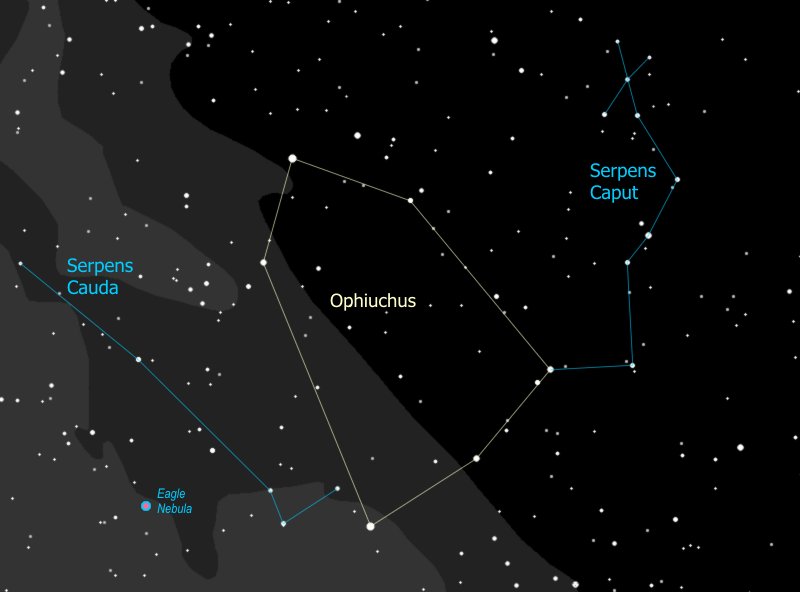

  5. That great, empty part of the sky just above Scorpius actually is a constellation, it's called Ophiuchus and it's kind of coffee-pot shaped. {Trace out Ophiuchus} It isn't Ophiuchus the Coffee Pot, though, it's Ophiuchus the Serpent Bearer, and the Serpent is there, too, with the name of "Serpens". No, I'm not making this up as I go along. Serpens is an odd constellation, treated as a single constellation but it's split into two parts -- the head of the serpent, called Serpens Caput, {trace out Serpens Caput} and the tail of the Serpent, called Serpens Cauda {trace out Serpens Cauda}. This has been recognized as a constellation for over 4,000 years, as a great giant wrestling a serpent. And by golly, with a little imagination you can just about see it. Well I can.
